High Frequency DC Technology 65kV, 2.5mA, Focal Spot 0.4mm Double lead-lined Generator Lightweight and Compact Design Real-time Angulation Display Large Battery Capacity.

The Refine GT-1 is a portable, high-frequency DC dental X-ray gun known for its compact design (around 1.8kg), 0.4mm focal spot for sharp images, 65kV/2.5mA output, 0.01-2s exposure time, large battery capacity (2500mAh), and Type-C fast charging, offering precise control with an ergonomic grip and digital display for dental professionals needing high-definition, low-dose imaging on the go, often paired with digital sensors. Key Specifications:

• Technology: High-frequency DC (Direct Current).
• Tube Voltage: 60-65kV (Max 70kV).
• Tube Current: 2.5mA (some models 2mA).
• Focal Spot: 0.4mm (for high-definition).
• Exposure Time: 0.01 - 2.0 seconds.
• Battery: 2500mAh Li-ion (up to 400 exposures).
• Weight: Approximately 1.8 kg (lightweight).
• Charging: Type-C (Fast Charging).

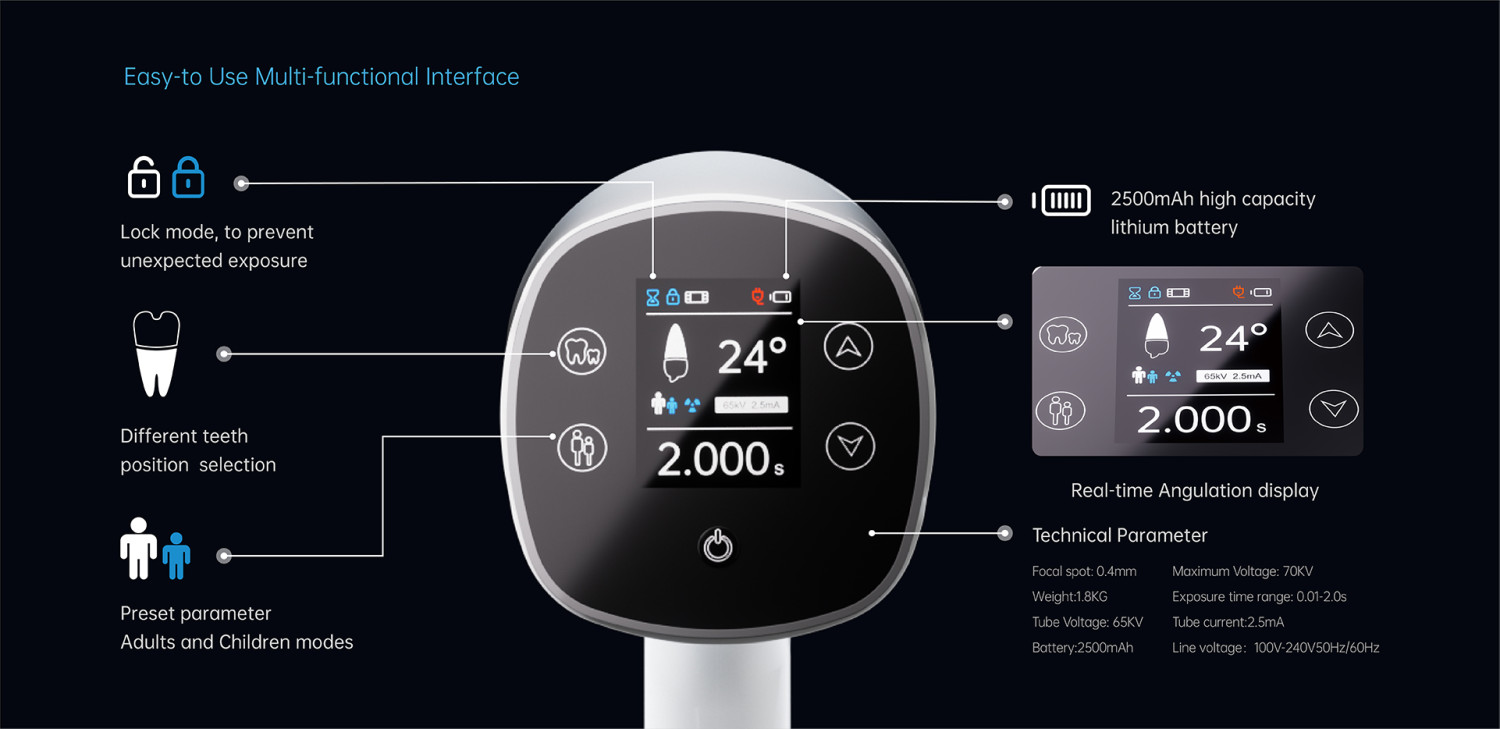

• Features: Ergonomic design, real-time angulation display, touch screen.
• Compatibility: Works with digital sensors (APS CMOS) or film.

Benefits:

• High-Definition Images: Thanks to the small focal spot.
• Reduced Radiation: High-frequency DC technology lowers exposure dose.
• Portability: Lightweight and battery-operated for easy use anywhere.
• User-Friendly: Touch screen and intuitive controls.

Paired Digital Sensor Specs (Example):

• Detector: APS CMOS.
• Resolution: ~20 lp/mm True Resolution.
• Interface: USB 2.0.
